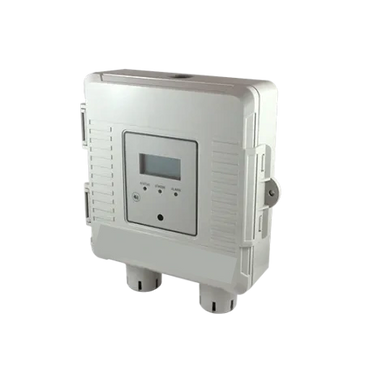

The AZC-GH Series Greenhouse/Horticulture sensor is designed for a greenhouse or indoor grow facility to monitor and allow control for optimum plant growing conditions. The AZC-GH-XXX Series is available in 2 models; Temperature & Humidity or Temperature, Humidity & Carbon Dioxide. The GH Series utilizes a highly accurate and reliable dual-channel, non-dispersive infrared (NDIR) sensor to monitor CO2, a precision thermistor to monitor temperature and a thermoset polymer based capacitance sensor to measure humidity levels. All sensors are encapsulated in filtered sensor pods that are field replaceable. Features include an LCD for configuration and visual indication, various output signal types, optional relays for alarm indication. An IP65 rated enclosure that can be either wall mounted on suspend from the ceiling is provided to protect against moisture penetration.
Electric Charging Monitor
AZC-CGE Detection System will give you a signal for up to 3 different gas levels. Equipment powered by lead acid batteries, such as forklifts used in a warehouse, have heavy duty battery banks that are commonly lined up in an indoor charging station formation where many machines can be charged at one time. Lead acid batteries produce flammable hydrogen gas as part of the normal charging process. The amount of hydrogen that is produced varies depending on the size and number of batteries and can increase with overcharging, excessive heat and other factors. As the hydrogen level builds, the risk of fire and explosion increases which is a serious safety concern. Also available with CO2 Sensors.
AZ-FM Filter Monitor
The AZ-FM-(A, B or C) lets you know that your air system static pressure has increased and gives a visual LED signal. It comes complete with selected adjustable pressure ranges, air sensing tubes and Wall Mount LED Indicator.
Ranges: A - .08 to 1.2 " WC, B - .2 to 2" WC or C - 2 to 10" WC
Power Supply: 24 VAC/VDC
AZ-ASC aIR Static Control sERIES
The AZ-ASC-(A, B or C) lets you control bathroom and other exhaust applications via static pressure measurement of fan airflow and a VFD, saving energy for properties and businesses.
Ranges: A - .08 to 1.2 " WC, B - .2 to 2" WC or C - 2 to 10" WC
Power Supply: 24 VAC/VDC
AZR-6 ReLay
The AZR-6 is a microprocessor-controlled interface designed to provide maximum flexibility with a minimum of cost. With a variety of standard inputs, the AZR-6 provides the user with the ability to interface several devices to a single analog output. The AZC-6R can average two to six inputs, output the highest of two to six inputs, output the lowest of two to six inputs, output the sum of 2 inputs, or output the difference of two inputs. The AZC-6R also accepts up to 6 digital inputs (binary sequence) and outputs a proportional analog signal.
